Silica gel is very important in transformer breathers. Transformer Silica Gel takes in moisture from air before it goes into the transformer tank. This keeps the insulation oil dry and stops rust from forming. The technology can hold up to 25% of its weight in water vapor. This makes Transformer Breather Silica Gel a good and trusted option. Many breathers have color indicators so you can check moisture levels easily. Some new models have automatic regeneration. This helps you take care of the system with less work.
Feature | Description |
|---|---|
Moisture Absorption | Takes in moisture from air that goes into the transformer tank during breathing cycles. |
Prevention of Degradation | Stops insulation oil from getting worse and stops rust inside. |
Lifespan Extension | Helps transformers last longer. |
Maintenance Cost Reduction | Lowers the cost to fix problems caused by moisture. |
Key Takeaways
Silica gel takes water from the air. This keeps transformer oil dry. It also stops rust from forming.
Transformers with silica gel work for more years. They need fewer fixes because there is less water damage.
Self-indicating silica gel changes color when it is full. This makes it easy to know when to do maintenance.
Check the color of silica gel often. This helps you know when to change it and keep your transformer safe.
Dehydrating breathers remove dust and water from the air. This makes sure only clean air goes into the transformer.
Automatic regeneration models save time. They dry out silica gel by themselves, so you do not have to do it.
Good moisture control stops insulation from breaking down. It also helps prevent electrical problems in transformers.
Teaching workers how to do maintenance helps transformers work well and stay safe.
Transformer Silica Gel
What Is Silica Gel?
Transformer silica gel is special because it is made from silicon dioxide. It looks like tiny glass beads and has lots of holes. Manufacturers make it from sodium silicate. The gel has a big surface area. This helps it grab and hold water. Think of it like a sponge for moisture. It does not feel wet or sticky. It traps water vapor inside its small holes.
Transformer silica gel can soak up 1 kg of water for every 5 kg of gel.
It is hydrophilic, so it likes water and pulls it from the air.
The chemical formula for blue silica gel is SiO₂·nH₂O + CoCl₂.
It changes color when it gets wet, so you know when to replace it.
Why Use Silica Gel in Transformers?
Transformer silica gel keeps your transformer safe from moisture. When the transformer cools, it pulls in air from outside. This air goes through the silica gel. The gel takes out the humidity. Only dry air gets to the transformer oil. When the transformer heats up, the air goes back out. This cycle keeps the oil clean and steady.
Tip: Dry air helps the oil last longer. It makes insulation stronger and stops breakdowns. You spend less on repairs and your transformer lasts more years.
Here are reasons to pick transformer silica gel over other materials:
The price is low, so it saves money.
You can heat it to use it again, so it is good for the environment.
The color change shows you when to replace or recharge it, so maintenance is easy.
If you compare transformer silica gel to other desiccants, you see it holds a medium amount of moisture. It can trap up to 40% of its weight in water. This is less than molecular sieves, but it is enough for most transformers. The table below shows how they compare:
Desiccant Type | Adsorption Capacity | Thermal Stability | Cost | Main Applications |
|---|---|---|---|---|
Silica Gel | Moderate | Moderate | Low | Food packaging, electronics, transformers |
Activated Alumina | High | Excellent | Moderate | Air drying, water treatment |
Molecular Sieve | Very High | High | High | Gas separation, drying gases |
Activated Carbon | Moderate | Low | Low | Air purification, odor control |
Types of Silica Gel
There are different types of transformer silica gel. Each type has its own features. The most common are self-indicating and non-indicating silica gel.
Self-indicating silica gel changes color when it gets wet. Blue silica gel turns pink when it is full of water. This color change helps you know when to do maintenance. You do not need special tools to check it.
Non-indicating silica gel stays white or clear. You cannot tell when it is full without testing.
Feature | Self-Indicating Silica Gel | Non-Indicating Silica Gel |
|---|---|---|
Color Change | Yes | No |
Visual Cue for Moisture Level | Yes | No |
Composition | Blue/Orange with indicators | White/Translucent |
Moisture Absorption Capacity | Up to 30-40% of weight | Up to 30-40% of weight |
You might also see Envirogel and other special gels in transformer breathers. Envirogel is a kind of self-indicating silica gel. It is safe and simple to use. You need to heat it between 120–180°C to use it again. Over time, silica gel can turn into fine dust. You should use filters to stop dust from getting in. Molecular sieves are another choice, but they cost more and need higher heat to work again.
Note: Low-value silicas are safer for the environment. High-value silicas can have a bigger effect on nature.
When you pick transformer silica gel, you get good performance, low cost, and easy care. The color-changing feature helps you keep your transformer working well and safely.
Silica Gel Breather
Function of Breather
You rely on a breather to protect your transformer from moisture and dust. The main job of a silica gel breather is to keep water vapor and particles out of the transformer oil. When air enters the transformer, the breather filters out moisture and dust. This keeps the insulation strong and prevents damage. Dehydrating breathers use silica gel to absorb water from the air. You can trust this system to keep your transformer safe and working well.
The breather stops moisture from getting inside.
It blocks dust and dirt from entering the transformer.
Silica gel breather helps keep the oil clean and dry.
Dehydrating breathers make sure the transformer lasts longer.
Many breathers, like ZEOZORB and CEDASPE® E700, use advanced designs to improve moisture control. These models offer strong protection and easy maintenance. You can see when the silica gel needs changing because it changes color. This makes your job easier and helps you avoid problems.
How Silica Gel Breather Works
A silica gel breather works in a simple but effective way. When the transformer breathes, air moves in and out. The breather makes sure only dry, clean air gets inside. Dehydrating breathers use silica gel to trap water vapor. The gel sits inside the breather and grabs moisture from the air. You can see when the gel is full because it changes color.
Here is how you replace the silica gel in a breather:
Remove the outer oil cup from the breather.
Clean the inner oil cup with a rag.
Take out the inner oil cup and place a bucket under the silica gel tank.
Let the silica gel fall into the bucket.
Clean both oil cups and add new oil.
Put the inner oil cup back and screw the outer cup onto the base.
Open the sealing cover and pour new color-changing silica gel into the feeding port.
Seal and tighten the cover to finish.
Dehydrating breathers make this process easy. You can keep your transformer running smoothly by checking the color of the gel and replacing it when needed.
Benefit | Description |
|---|---|
Efficient moisture control | Silica gel breathers regulate moisture and protect transformer oil. |
Preserve insulation from water | They keep insulation strong and prevent water damage. |
Visual indication of saturation | Color-changing silica gel shows when to replace it. |
Increased shelf life of equipment | Dry air helps transformers last longer. |
Enhanced working efficiency | Dry insulation reduces failures and lowers costs. |
Reduced maintenance costs | Less moisture means fewer electrical faults. |
Sustainable and eco-friendly | Silica gel is reusable and safe for the environment. |
Air Filtration Process
You need clean, dry air for your transformer. The breather uses a multi-layer system to filter air. First, the air enters the breather and passes through a solid particle filter. This filter catches dust and dirt that are 1 micron or bigger. Next, the air moves through the silica gel. The gel removes water vapor and keeps the air dry. Finally, the air goes through another filter to catch any leftover particles.
Tip: Always check the color of the silica gel. If it turns pink or orange, it is time to replace it. This keeps your transformer safe from moisture and dust.
Air enters the dehydrating breather.
The first filter catches large particles.
Silica gel removes moisture from the air.
The final filter makes sure the air is clean and dry.
Dehydrating breathers like ZEOZORB and CEDASPE® E700 use these steps to protect your transformer. You can trust these breathers to keep your equipment safe and working well.
Moisture Control
Moisture Risks
Moisture can hurt your electrical transformer in many ways. Keeping moisture out helps stop damage to your equipment. Water can get inside from different places:
Gasket failures let water leak in, mostly at manhole covers and bushing mountings.
Cracked bushings from heat or stress let moisture enter slowly.
Radiator leaks from rust or damage give water a way in.
Heavy rain, floods, and high humidity make it easier for moisture to get inside.
Mistakes during maintenance, like bad oil handling or forgotten seals, can make moisture problems worse.
Moisture control keeps your transformer safe from these dangers. If you do not control moisture, insulation can break down and metal can rust. These issues may cause electrical problems and make your transformer last less time.
Moisture Absorption Process
It is important to know how moisture control works in a transformer breather. Silica gel breathers help a lot with this job. When your transformer gets hot or cools down, air moves in and out of the tank. This air can bring in humidity, which is bad for insulation and oil.
Silica gel grabs moisture from the air before it goes into the transformer. Here is how it works:
Silica gel sits in the breather and catches moisture from air coming in.
The gel changes color when it takes in water, so you know when to replace or recharge it.
Dehydrating breathers use pure silicon oxide to soak up humidity from the air.
Silica gel can hold up to 40% of its weight in water, so it works well for moisture control.
This keeps oil clean and helps your transformer work better.
Tip: Always look at the color of the silica gel. If it changes, you need to replace or recharge the gel. Doing this helps stop moisture damage and electrical problems.
Impact on Transformer Health
Moisture control is very important for keeping your transformer healthy. Too much moisture causes many problems in transformer oil and insulation. You can see what happens in the table below:
Consequence | Description |
|---|---|
Too much moisture makes insulation weaker against electrical stress. | |
Accelerated cellulose aging | Moisture breaks down cellulose faster, so insulation ages quickly. |
Bubble evolution | Moisture lowers the bubbling point, making bubbles that can cause partial discharge (PD). |
Brittleness of cellulose | Moisture breaks cellulose chains, making them brittle over time. |
Irreversible deterioration | Too much moisture can cause permanent damage to insulating paper from partial discharge. |
Silica gel breathers help protect your transformer from these problems. Moisture control slows down insulation aging and lowers the chance of electrical failures. High moisture can cause insulation breakdown and sudden transformer failure. Silica gel breathers help your transformer last longer. Maintenance-free dehydrating breathers can make your transformer last up to 50% longer. They also help you spend less on repairs and make your transformer work better.
Note: Good moisture control keeps your transformer safe and working well for a long time. You save money on repairs and avoid surprise breakdowns.
Monitoring Effectiveness
Visual Inspection
You help keep your transformer safe. Looking at the breather often helps you find problems early. Silica gel breathers need you to check them because they need care. The desiccant inside can get full of moisture over time. You should look for signs that show the breather is not working well.
Check if the silica gel has changed color.
Look for dust or dirt on the breather.
Make sure the breather is tight and not leaking.
Look at the oil cups for any dirt or problems.
Watch for cracks or damage on the breather.
Tip: If the silica gel changes color, it may need to be replaced. This easy step helps you avoid expensive repairs and keeps your transformer working.

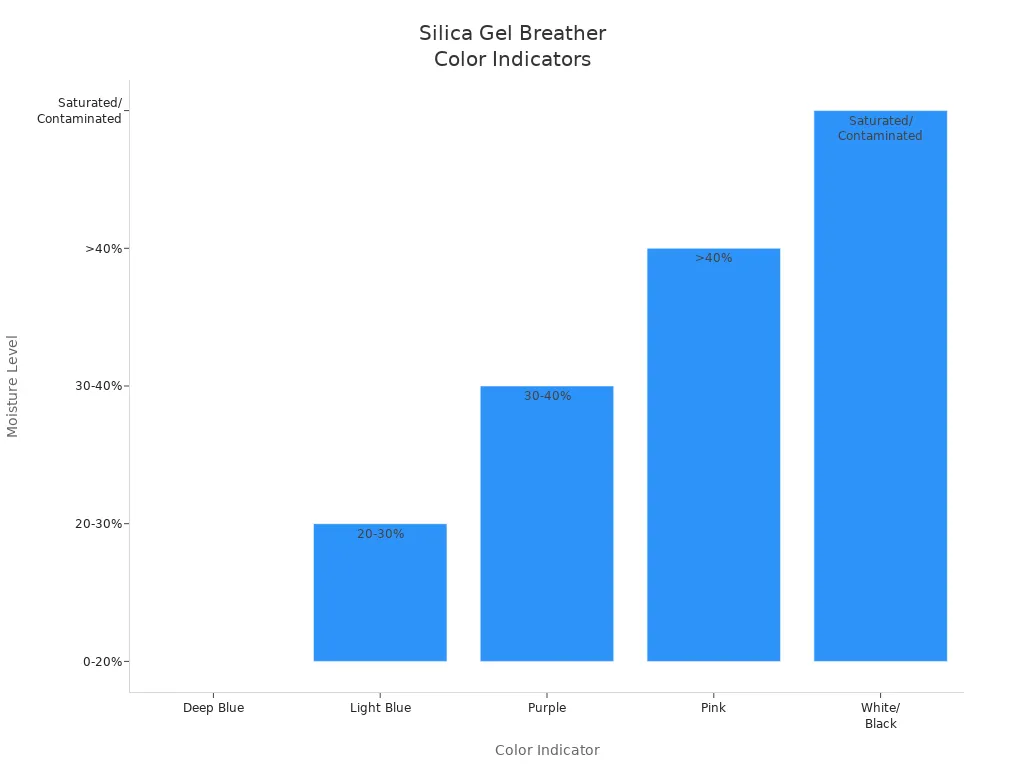

Color Indicators
Color indicators help you do your job faster. You do not need special tools to check moisture. The silica gel changes color when it takes in water. Each color shows how much water is in the gel and what you should do next.
Color | Moisture Level | Risk Level | Required Action |
|---|---|---|---|
Deep Blue | 0-20% | Low | Regular monitoring |
Light Blue | 20-30% | Moderate | Increased checks |
Purple | 30-40% | High | Plan replacement |
Pink | >40% | Critical | Immediate replacement |
White/Black | Saturated/Contaminated | Emergency | System shutdown |
If the gel turns pink or white, you need to act fast. Change the silica gel to make the breather work again. If you do not change it, moisture can get in and hurt the transformer.
Maintenance Frequency
You need a good plan to take care of silica gel breathers. How often you check depends on a few things. Humidity and dirt in your area change how often you should look at the breather. If your area is humid or dusty, check the breather more often.
Check the breather every month if things are normal.
Look every two weeks if it is very humid or dirty.
Follow what the manufacturer says about service times.
Watch the pressure drop to see if the breather is full.
Change or recharge the silica gel when you see color changes.
Note: Checking the breather often keeps your transformer safe and helps it last longer. You save money and stop surprise problems by following a good plan.
A strong plan helps you find problems before they get worse. You protect your equipment and keep everything working well. Always remember that taking care of silica gel breathers is an easy way to stop big problems.
Replacement and Regeneration
When to Replace
You should know when to change the silica gel. The gel gives clear signs when it cannot hold more moisture. Look for changes in color, texture, and breathing resistance. Use the table below to help you decide when to act:
Indicator | Normal Range | Warning Sign | Critical Level |
|---|---|---|---|
Color Band Width | 2-3 cm | >4 cm | >6 cm |
Color Transition | Sharp | Blurred | Mottled |
Surface Texture | Uniform | Spotty | Crystallized |
Breathing Resistance | <15 Pa | 15-25 Pa | >25 Pa |
Moisture Content Ratio | <1.2 | 1.2-1.5 | >1.5 |
If you see a wide color band, mottled color, or a hard surface, change the silica gel right away. High breathing resistance or high moisture content means the gel is full.
Regeneration Methods
You can make silica gel ready to use again. This saves money and helps nature. Follow these steps to do it safely:
Take out the old silica gel from the breather.
Spread the gel in a thin layer on a clean tray.
Heat the gel in an oven at 120–180°C. Raise the temperature slowly so you do not harm the gel.
Watch for the color to turn blue or orange. This shows the gel is dry.
Let the gel cool before putting it back in the breather.
Some new breathers, like the Qualitrol STB000, have automatic regeneration. These use a heater inside to dry the silica gel when the transformer breathes out. You do not need to take out the gel or check it as much. Automatic systems also:
Cut down on manual work.
Give real-time moisture data.
Record breathing cycles for better planning.
Let you check moisture from far away using digital tools.
Tip: Automatic regeneration saves you time and keeps your transformer safe with less work.
Safety Precautions
Always follow safety rules when you change or dry silica gel. Protect yourself and your equipment by using these steps:
Change silica gel only when the weather is good and air is not too wet.
Stay away from live parts and turn off power if needed.
Wrap the breathing tube tip with clean plastic after you remove the breather to keep moisture out.
Change the insulating oil in the oil cup and add new oil.
Wear gloves and do not touch blue silica gel, because it has cobalt oxide.
If silica gel gets in your eyes, rinse with water and get help.
Raise oven temperature slowly when drying the gel to protect it.
Follow all transformer rules if you see strange oil levels.
Note: Safety is most important. Handle silica gel carefully and always wear the right gear.
Transformer Maintenance
Preventive Schedules
You keep your transformer safe by following a good plan. Regular checks help you find problems early. This can stop expensive repairs. You should look at the silica gel breather often and care for it.
Check the oil level in the cap under the silica gel breather once a month. If the oil is low, add more until it is right.
Look at the breathing holes every month. Clean them if you see dirt or anything blocking them. This helps air move well.
Check the silica gel every day. If it turns pink, change it right away.
Clean all silica gel breathers each month to get rid of dust and dirt.
Tip: Use a checklist to remember these steps. Write down each check and any changes you make. This record helps you know how your transformer is doing.
Staff Training
You need trained workers to keep your transformer working well. Training teaches your team how to care for breathers and silica gel. These classes cover many important things.
Training Course | Description |
|---|---|
Transformer Maintenance | A 3-day class that teaches maintenance, finding problems, and fixing them. |
Training Objectives | Learn how to test, fix, and make equipment work better. |
Target Audience | Engineers, managers, technicians, and workers who do maintenance. |
Your team learns how to keep transformers working for a long time. They learn about chemical and electrical tests. They study rules for the industry and how to use them. Training also gives them new ways to care for transformers.
Learn how to keep transformers working well.
Find out how to test and spot problems.
Study the best ways from the industry.
Get new ideas for fixing maintenance problems.
Note: Keep a record of all training classes. This helps you know which workers are ready for maintenance jobs.
Product Selection
You want the best products for your transformer. Picking the right silica gel and breather is important. Look for features that make care easy.
Choose silica gel that changes color from blue to pinkish white as it gets wet. This shows you when to heat or change it.
Make sure the oil cup is easy to check. The oil helps dust settle and keeps the breather clean.
Pick breathers with clear breathing holes. Air should only go through these holes to stop leaks and keep water out.
Match the breather to your transformer’s size and how it works.
Use special breathers if your area is very humid.
Make sure the breather has enough desiccant for big transformers or heavy use.
Good silica breathers help keep your transformer safe and working well. Think about where your transformer is and how much water is in the air. Special breathers work better in hard places.
Tip: Always read the product details before you buy. Good breathers and silica gel make care easier and protect your transformer for a long time.
Silica gel breathers help keep transformers safe and dry. You protect your equipment by checking the color of the gel. Replace the gel when the color changes. Some new breathers can dry out the gel by themselves. This makes your job easier. You will have fewer problems and save money over time.
Remember: Check your transformer often and use new technology. This helps your transformer last longer and work better. Keeping moisture away is very important for good performance.
